SRC531
SOLLROC
Availability: | |
---|---|
Quantity: | |
Product Description

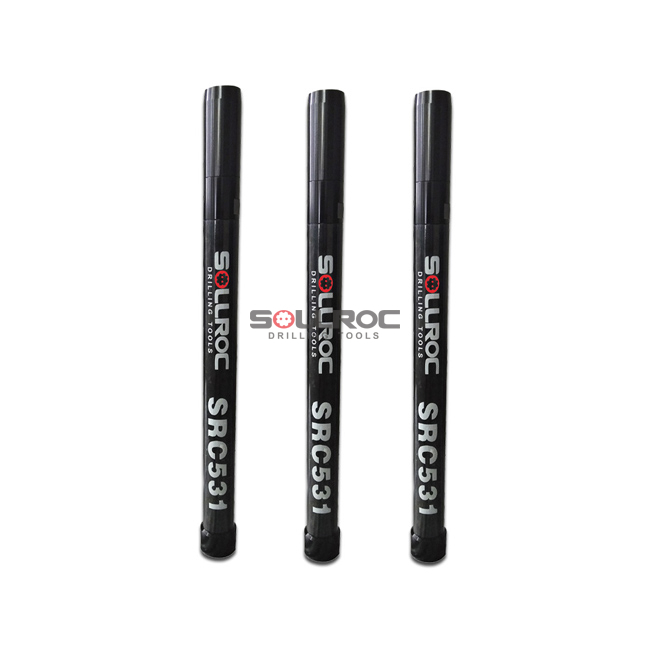

SRC531 RC hammer is smallest one of SOLLROC full range reverse circulation hammer at present. With the exceptional quality and good performance, it is a excellent sampling tool used in varies working conditions.
Model | SRC531 |

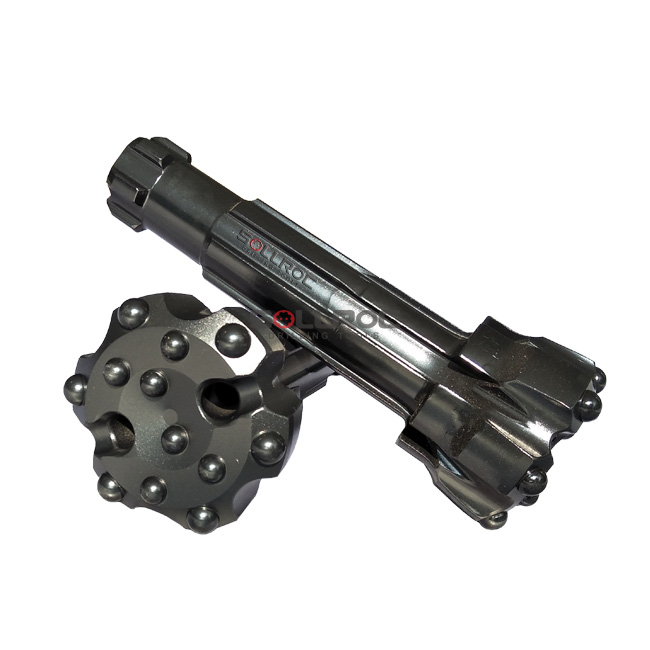

Can Fit Bit shank | RE531 |
Top sub thread | 3" Remet |
Length (less bit) | 1069mm (42.1 in) |
External diameter | 81mm(3.19") |
Weight (less bit) | 29kg (64lbs) |
Hole range | 84-105mm (3 5/16 in - 4 1/8 in) |
Working pressure | 15-35 bar |
Speed recommended | 25-40 rpm |
Diameter | No. x Button Dia (mm) | Recommended Shroud Dia. (mm) | Weight (kg) | Part No | |||
mm | inch | Outer | Front | Center | |||
84 | 3 5/16" | 6*13mm | 4*12mm | 2*12mm | 82 | 3.8 | SRC531-84 |
86 | 3 3/8" | 6*13mm | 4*12mm | 2*12mm | 84 | 3.9 | SRC531-86 |
89 | 3 1/2" | 6*13mm | 4*12mm | 2*12mm | 87 | 4 | SRC531-89 |
92 | 3 5/8" | 6*14mm | 4*12mm | 2*12mm | 90 | 4.1 | SRC531-92 |
95 | 3 3/4" | 6*14mm | 4*12mm | 2*12mm | 93 | 4.2 | SRC531-95 |
100 | 3 15/16" | 6*14mm | 4*12mm | 2*12mm | 98 | 4.3 | SRC531-100 |
105 | 4 1/8" | 6*14mm | 4*12mm | 2*12mm | 103 | 4.5 | SRC531-105 |
