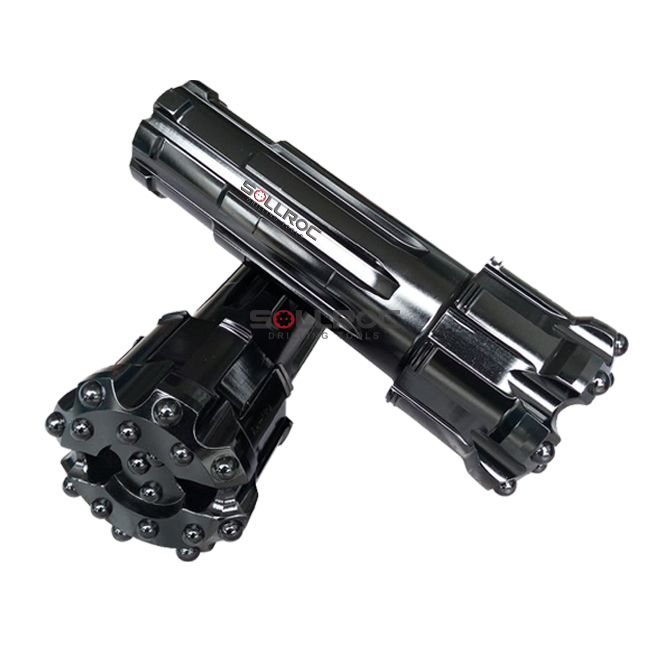

SRC054 OD130mm Reverse Circulation Hammer

Material: quality alloy steel
SRC054 hammer shank: RE054 / PR54
Air pressure: 15-35 bar / 217- 508 PSI
Regular drill bit diamete ranger: 135mm -152mm
Package: plywood case per each hammer
MOQ: one pc

  • SRC054
  • SOLLROC
Quantity:

Product Description

Overview

With the exceptional quality and good performance, SRC054 RC hammer is a excellent sampling tool used in varies working conditions.

Total parameter list

Model

SRC054

Can Fit Bit shank

RE054 / PR54

Top sub thread

4" Remet

4.5" Remet

4" Metzke

4.5" Metzke

Length (less bit)

1294mm (50.94 in)

External diameter

130mm(5.12")

Weight (less bit)

84kg (186.7lbs)

Hole range

135-152mm (5.4 in - 6 in)

Working pressure

15-35 bar

Speed recommended

25-40 rpm

Drill bits

Diameter

No. x Button Dia (mm)

Recommended Shroud Dia

mm

Weight

(kg)

Part No

mm

inch

Outer

Front

Center

135

5 3/8"

8*16mm

6*16mm

3*14mm

133

18.8

SRC054-135

137

5 3/4"

8*16mm

6*16mm

3*14mm

135

19

SRC054-137

140

5 1/2"

8*16mm

6*16mm

3*14mm

138

19.3

SRC054-140

143

5 5/8

8*16mm

6*16mm

3*14mm

141

18.6

SRC054-143

146

5 3/4"

8*16mm

6*16mm

3*14mm

144

19

SRC054-146

152

6"

8*16mm

6*16mm

4*14mm

150

19.4

SRC054-152
