ODEX76, ODEX90. ODEX115, ODEX140, ODEX165, ODEX190, ODEX240, ODEX280
SOLLROC
SC-ODEX
| Quantity: | |
|---|---|
Product Description

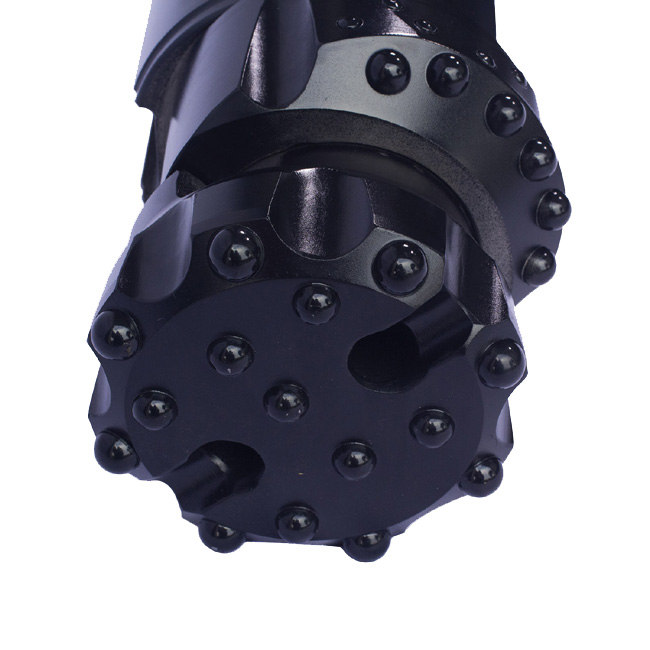

ODEX system is a down-hole hammer system that is designed to advance casing during drilling.
SOLLROC ODEX system is composite of Pilot bit, reaming bit and guide device.
They are made of high quality alloy steel and carbide with strict heat treatment. SOLLROC ODEX system have been improven in many work sites in many areas.
| Model | Casing sizes (mm) | Min. inner dia. Of casing sho e (mm) | Reaming Dia. (mm) | Hammer shank | Drill pipe | |||
| Max. OD | Min. ID | Thread | O.D (mm). | Wrench Flat (mm) | ||||
| ODEX90 | 115 | 102 | 90 | 123 | DHD3.5/COP32/QL30 | API 2 3/8" REG | 76 | 65 |
| ODEX115 | 142 | 128 | 115 | 152 | DHD340/COP44/SD4/QL40/M40 | API 2 3/8" REG | 76 | 65 |
| ODEX140 | 171 | 157 | 140 | 187 | DHD350R/COP54/SD5/QL50/M50 | API 2 3/8" REG | 89 | 65 |
| ODEX165 | 196 | 183 | 165 | 211 | DHD360/COP64/SD6/QL60/M60 | API 2 3/8" REG | 114 | 95 |
| ODEX190 | 222 | 205 | 190 | 237 | DHD360/COP64/SD6/QL60/M60 | API 3 1/2" REG | 114 | 95 |
| ODEX240 | 273 | 261 | 240 | 308 | DHD380/COP84/SD8/QL80/M80 | API 3 1/2" REG | 114 | 95 |
| ODEX280 | 324 | 305 | 280 | 378 | DHD1120/SD10/NUMA100 | API 4 1/2" REG | 114 | 95 |
We can design special dimensions for different casing tube diameter.
